MrVI analysis over Tahoe100M cells dataset

MrVI (Multi-resolution Variational Inference) is a model for analyzing multi-sample single-cell RNA-seq data. This tutorial show how to do run MrVI in PyTorch version over the Tahoe100M cells dataset and perform basic analysis.

!pip install --quiet scvi-colab
from scvi_colab import install

install()

[notice] A new release of pip is available: 24.3.1 -> 26.1.2
[notice] To update, run: pip install --upgrade pip

import os
import tempfile

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rapids_singlecell as rsc
import scanpy as sc
import scvi
import scvi.hub
import seaborn as sns
import torch
from scvi.external import MRVI

run_autotune = False

# import inspect
# print(inspect.getsource(MRVI))

scvi.settings.seed = 0
print("Last run with scvi-tools version:", scvi.__version__)

Last run with scvi-tools version: 1.5.0

sc.set_figure_params(figsize=(6, 6), frameon=False)
sns.set_theme()
torch.set_float32_matmul_precision("high")
save_dir = tempfile.TemporaryDirectory()
tahoe_data_dir = os.environ.get("TAHOE_DATA_DIR", "Tahoe100M")

%config InlineBackend.print_figure_kwargs={"facecolor": "w"}
%config InlineBackend.figure_format="retina"

pd.set_option("display.max_rows", 50)
pd.set_option("display.max_columns", 50)
pd.set_option("display.width", 1000)

Get the data

We start by downloading the model from its hub in order to use its metadata Note that the model is very large therefore it will take time to being download.

# get the hub data
tahoe_hubmodel = scvi.hub.HubModel.pull_from_huggingface_hub(
    repo_name="vevotx/Tahoe-100M-SCVI-v1", cache_dir="."
)

tahoe_hubmodel.model.adata.obs.head()

INFO     Loading model...
INFO     File ./models--vevotx--Tahoe-100M-SCVI-v1/snapshots/b5283a73fbbed812a95264ace360da538b20af89/model.pt
         already downloaded

	sample	species	gene_count	tscp_count	mread_count	bc1_wind	bc2_wind	bc3_wind	bc1_well	bc2_well	bc3_well	id	drugname_drugconc	drug	INT_ID	NUM.SNPS	NUM.READS	demuxlet_call	BEST.LLK	NEXT.LLK	DIFF.LLK.BEST.NEXT	BEST.POSTERIOR	SNG.POSTERIOR	SNG.BEST.LLK	SNG.NEXT.LLK	SNG.ONLY.POSTERIOR	DBL.BEST.LLK	DIFF.LLK.SNG.DBL	sublibrary	BARCODE	pcnt_mito	S_score	G2M_score	phase	pass_filter	dataset	_scvi_batch	_scvi_labels	_scvi_observed_lib_size	plate	Cell_Name_Vevo	Cell_ID_Cellosaur	observed_lib_size
BARCODE_SUB_LIB_ID
01_001_052-lib_1105	smp_1783	hg38	1878	2893	3284	1	1	52	A1	A1	E4	recgIHRi9MiCIr4CO	[('8-Hydroxyquinoline', 0.05, 'uM')]	8-Hydroxyquinoline	1.0	199.0	215.0	singlet	-50.74	-59.04	8.30	-55.0	1.0	-50.74	-87.96	0.0	-59.04	8.30	lib_1105	01_001_052	0.019357	0.174603	0.179670	G2M	full	0	0	0	2893	4	PANC-1	CVCL_0480	2893
01_001_105-lib_1105	smp_1783	hg38	1765	2434	2764	1	1	105	A1	A1	p2.A9	recgIHRi9MiCIr4CO	[('8-Hydroxyquinoline', 0.05, 'uM')]	8-Hydroxyquinoline	3.0	137.0	140.0	singlet	-37.97	-42.41	4.44	-43.0	1.0	-37.97	-64.52	0.0	-42.41	4.44	lib_1105	01_001_105	0.029581	0.297619	0.342857	G2M	full	0	0	0	2434	4	SW480	CVCL_0546	2434
01_001_165-lib_1105	smp_1783	hg38	3174	5691	6454	1	1	165	A1	A1	p2.F9	recgIHRi9MiCIr4CO	[('8-Hydroxyquinoline', 0.05, 'uM')]	8-Hydroxyquinoline	4.0	379.0	396.0	singlet	-129.66	-130.65	0.99	-130.0	1.0	-129.66	-186.89	0.0	-130.65	0.99	lib_1105	01_001_165	0.031629	0.031746	0.099084	G2M	full	0	0	0	5691	4	SW1417	CVCL_1717	5691
01_003_094-lib_1105	smp_1783	hg38	1380	1804	2050	1	3	94	A1	A3	H10	recgIHRi9MiCIr4CO	[('8-Hydroxyquinoline', 0.05, 'uM')]	8-Hydroxyquinoline	7.0	122.0	125.0	singlet	-31.79	-33.98	2.19	-36.0	1.0	-31.79	-49.36	0.0	-33.98	2.19	lib_1105	01_003_094	0.017738	-0.063492	0.019780	G2M	full	0	0	0	1804	4	SW1417	CVCL_1717	1804
01_003_164-lib_1105	smp_1783	hg38	1179	1514	1715	1	3	164	A1	A3	p2.F8	recgIHRi9MiCIr4CO	[('8-Hydroxyquinoline', 0.05, 'uM')]	8-Hydroxyquinoline	8.0	87.0	93.0	singlet	-28.99	-27.07	-1.92	-34.0	1.0	-28.99	-41.61	0.0	-27.07	-1.92	lib_1105	01_003_164	0.023118	-0.075397	-0.070879	G1	full	0	0	0	1514	4	A498	CVCL_1056	1514

# Load Cell Line Metadata
cell_lines = pd.read_csv(os.path.join(tahoe_data_dir, "cell_line_metadata.h5ad"))
cell_lines.head()

# Load the .h5ad file
adata = sc.read_h5ad(os.path.join(tahoe_data_dir, "tahoe100m_sample_100000_rand.h5ad"))
adata.obs.head()

We use a subset of data, show the plates stratification and perform HVG filtering following by merging the metadata and split to train and test

adata.obs.plate.value_counts()

plate
plate4    28225
plate8    28225
plate3    28224
plate7    15326
Name: count, dtype: int64

# HVG filtering
sc.pp.highly_variable_genes(
    adata, n_top_genes=15000, inplace=True, subset=True, flavor="seurat_v3", batch_key="plate"
)
adata

AnnData object with n_obs × n_vars = 100000 × 15000
    obs: 'drug', 'sample', 'BARCODE_SUB_LIB_ID', 'cell_line_id', 'moa-fine', 'canonical_smiles', 'pubchem_cid', 'plate', 'mean_gene_count', 'mean_tscp_count', 'mean_mread_count', 'mean_pcnt_mito', 'drugname_drugconc', 'targets', 'moa-broad', 'human-approved', 'clinical-trials', 'gpt-notes-approval'
    var: 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm', 'highly_variable_nbatches'
    uns: 'hvg'
    layers: None

# merge metadata
adata.obs = adata.obs.merge(
    tahoe_hubmodel.model.adata.obs[
        [
            "Cell_Name_Vevo",
            "dataset",
            "phase",
            "observed_lib_size",
            "S_score",
            "G2M_score",
            "sublibrary",
        ]
    ],
    how="left",
    left_on="BARCODE_SUB_LIB_ID",
    right_index=True,
)

adata.layers["counts"] = adata.X.copy()  # preserve counts
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
adata.raw = adata  # freeze the state in `.raw`

from sklearn.model_selection import train_test_split

train_ind, valid_ind = train_test_split(
    adata.obs.plate.index.astype(int), test_size=0.9, stratify=adata.obs.plate
)

Init the model

sample_key = "sample"  # target covariate sample/cell_line_id
batch_key = "plate"  # nuisance variable identifier
MRVI.setup_anndata(
    adata,
    sample_key=sample_key,
    batch_key=batch_key,
    layer="counts",
)

Train mrVI

import gc
import time

gc.collect()
start = time.time()
model = MRVI(adata)
model.train(
    max_epochs=400,
    early_stopping=True,
    plan_kwargs={"lr": 1e-3, "n_epochs_kl_warmup": 40},
    batch_size=512,
    early_stopping_patience=5,
    check_val_every_n_epoch=1,
    datasplitter_kwargs={"external_indexing": [np.array(train_ind), np.array(valid_ind)]},
)
end = time.time()
print(f"Elapsed time: {end - start:.2f} seconds")

Monitored metric elbo_validation did not improve in the last 5 records. Best score: 1306.211. Signaling Trainer to stop.
Elapsed time: 322.68 seconds

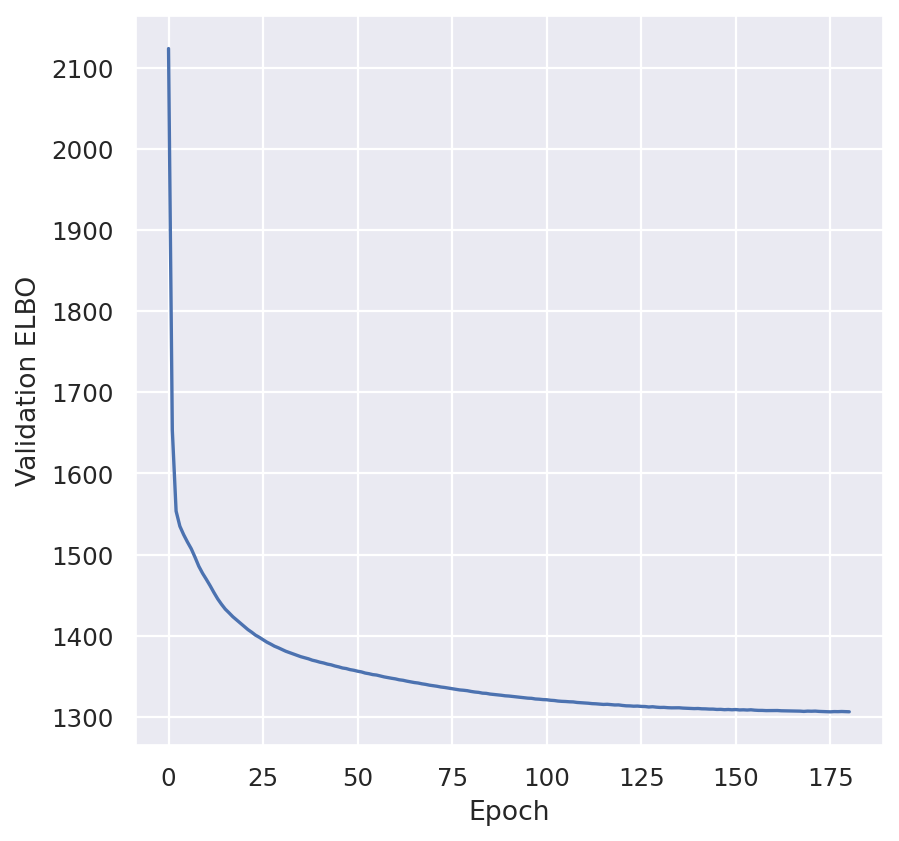

plt.plot(model.history["elbo_validation"])
plt.xlabel("Epoch")
plt.ylabel("Validation ELBO")
plt.show()

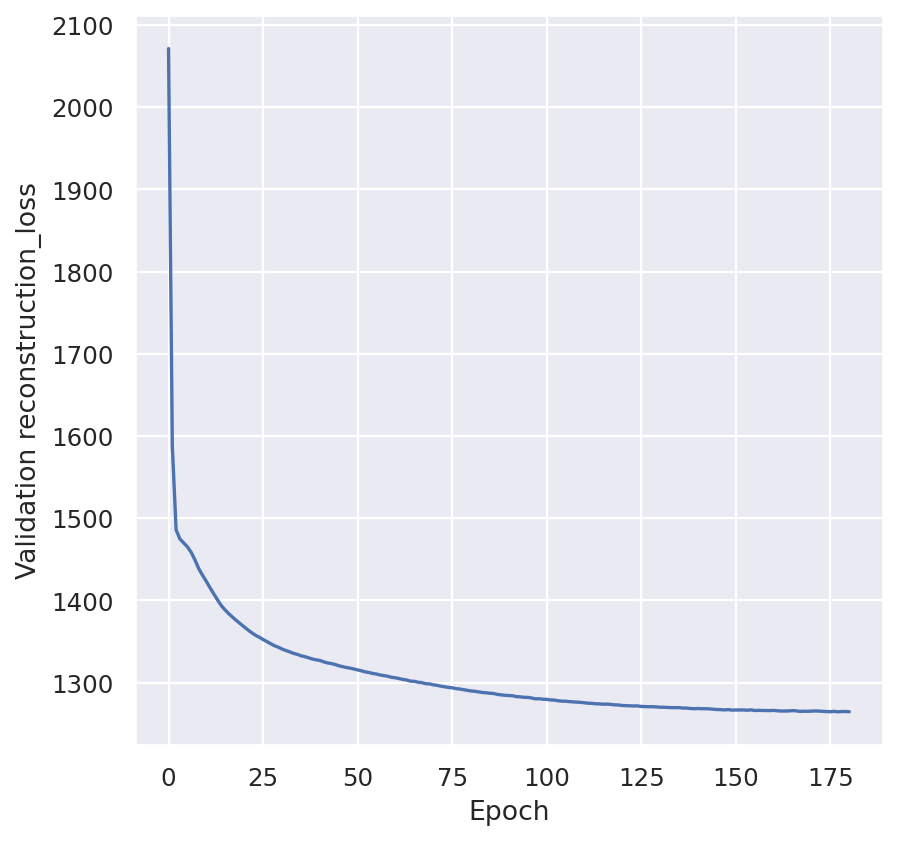

plt.plot(model.history["reconstruction_loss_validation"])
plt.xlabel("Epoch")
plt.ylabel("Validation reconstruction_loss")
plt.show()

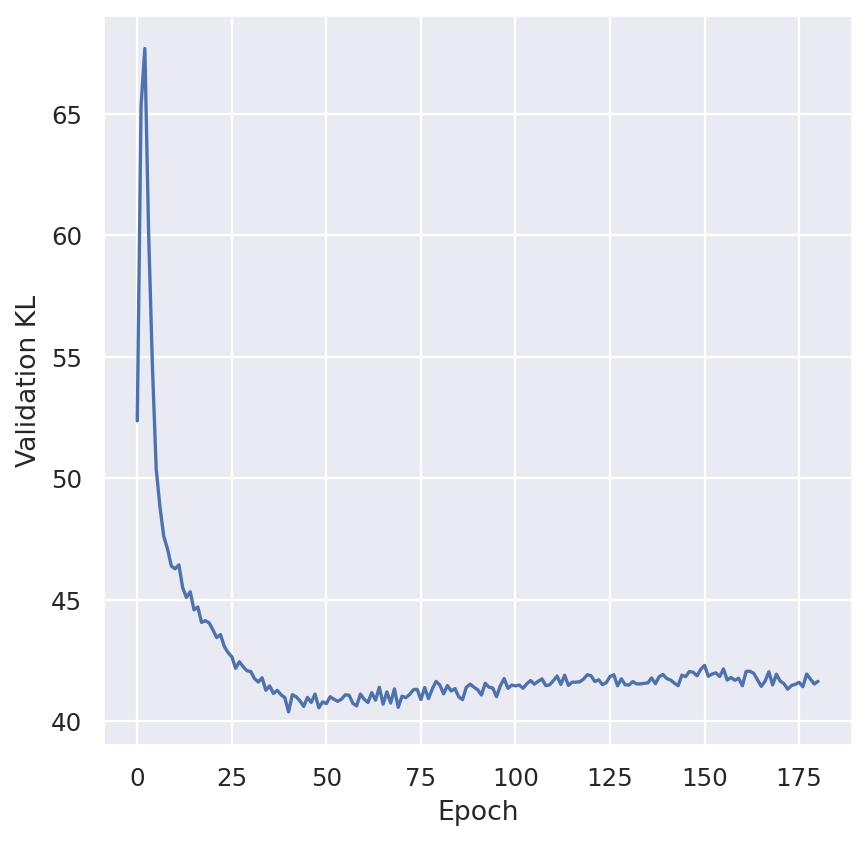

plt.plot(model.history["kl_local_validation"])
plt.xlabel("Epoch")
plt.ylabel("Validation KL")
plt.show()

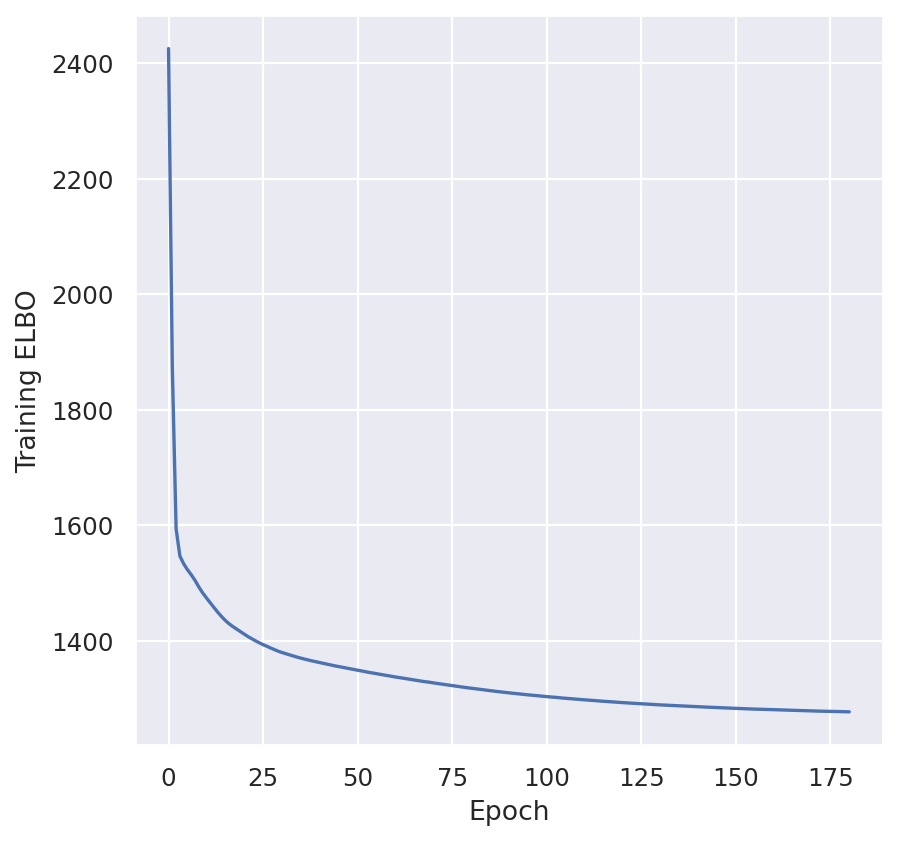

plt.plot(model.history["elbo_train"])
plt.xlabel("Epoch")
plt.ylabel("Training ELBO")
plt.show()

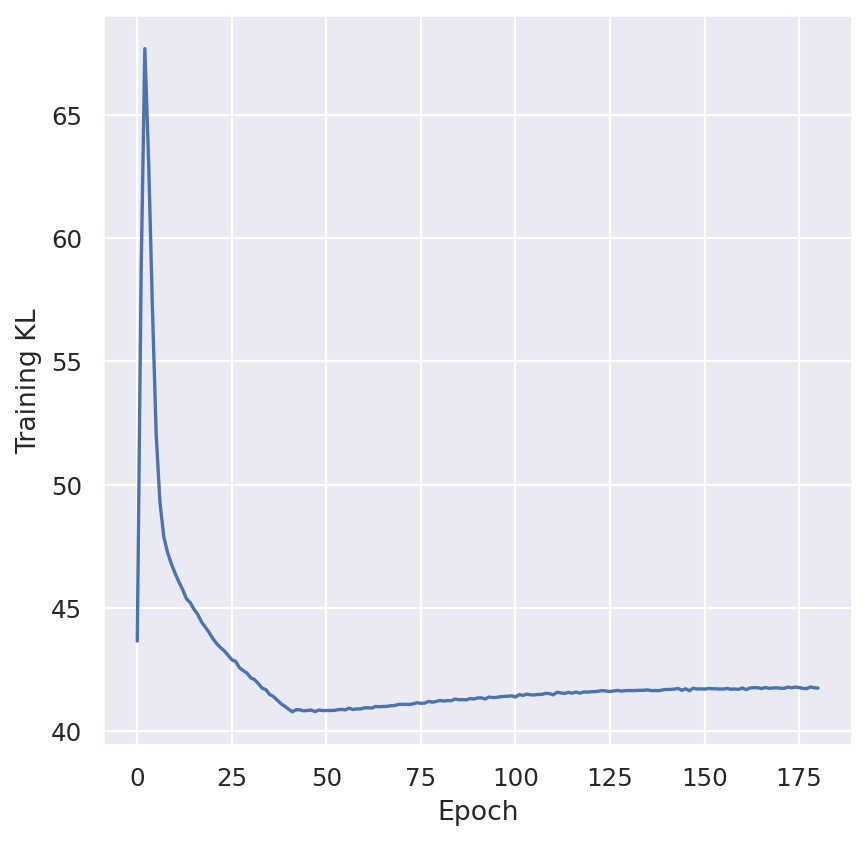

plt.plot(model.history["kl_local_train"])
plt.xlabel("Epoch")
plt.ylabel("Training KL")
plt.show()

Visualize cell embeddings and sample distances

The latent representations of the cells can also be accessed and visualized using the get_latent_representation method. MrVI learns two latent representations: u and z. u is designed to capture broad cell states invariant to sample and nuisance covariates, while z augments u with sample-specific effects but remains corrected for nuisance covariate effects.

# run PCA then generate UMAP plots
rsc.tl.pca(adata)
rsc.pp.neighbors(adata, n_pcs=50, n_neighbors=50)
rsc.tl.umap(adata, min_dist=0.1)

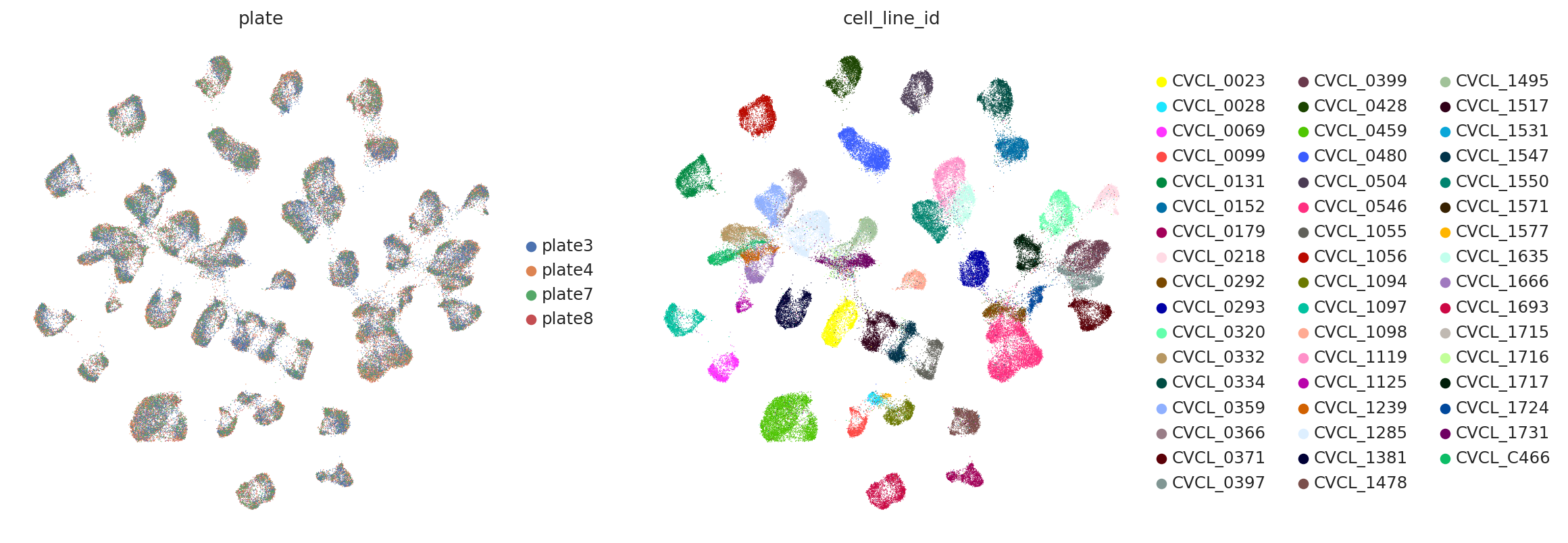

sc.pl.umap(
    adata,
    color=["plate", "cell_line_id"],
    ncols=2,
    frameon=False,
)

u = model.get_latent_representation()
adata.obsm["X_mrVI_Torch"] = u
rsc.pp.neighbors(adata, use_rep="X_mrVI_Torch")
rsc.tl.umap(adata, min_dist=0.3)

u.shape

(100000, 10)

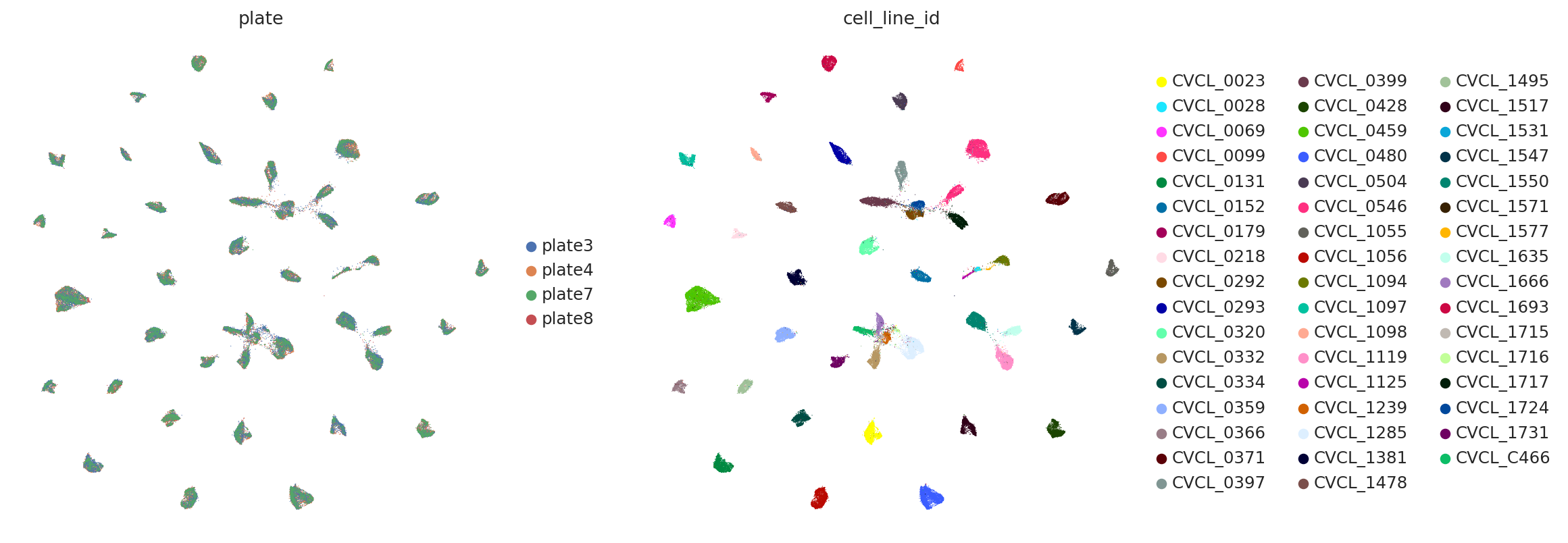

sc.pl.umap(
    adata,
    color=["plate", "cell_line_id"],
    frameon=False,
    ncols=2,
)

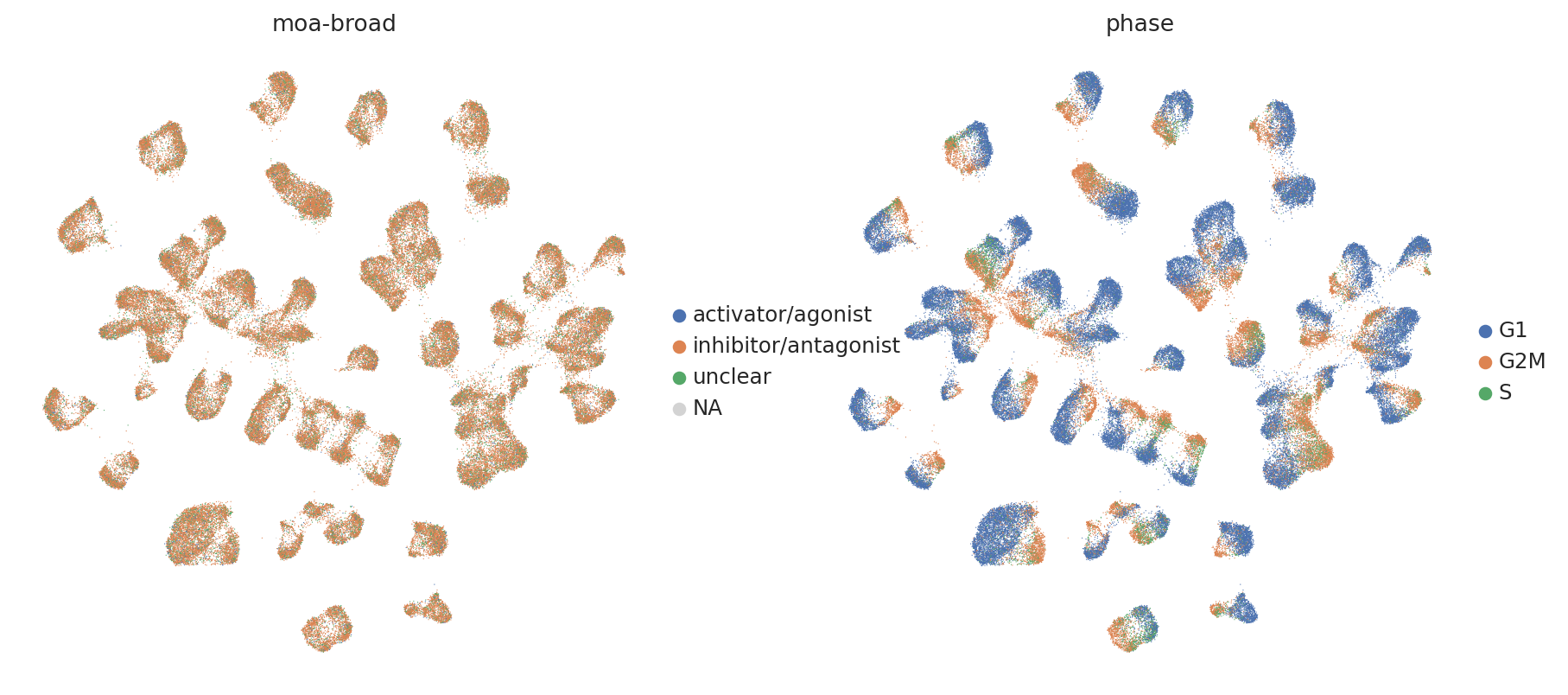

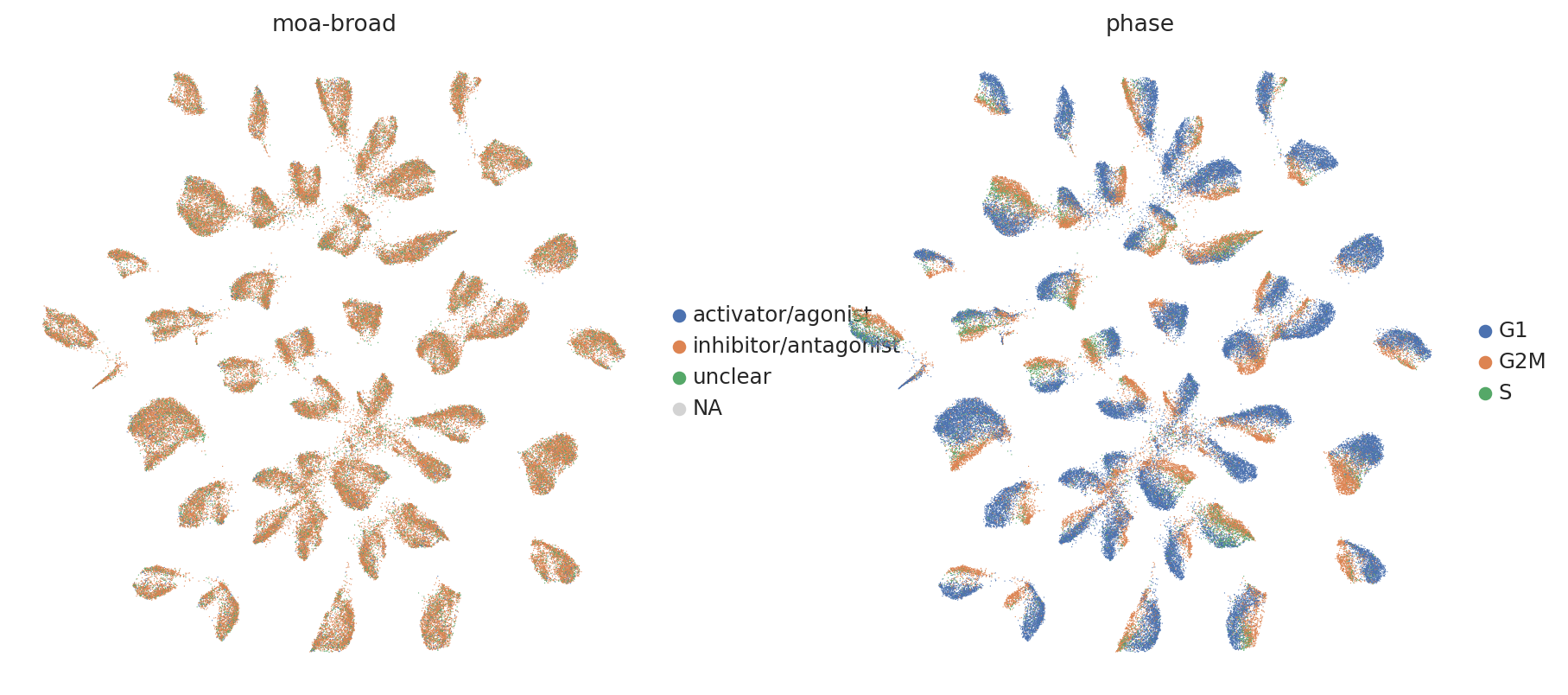

sc.pl.umap(
    adata,
    color=["moa-broad", "phase"],
    frameon=False,
    ncols=2,
)

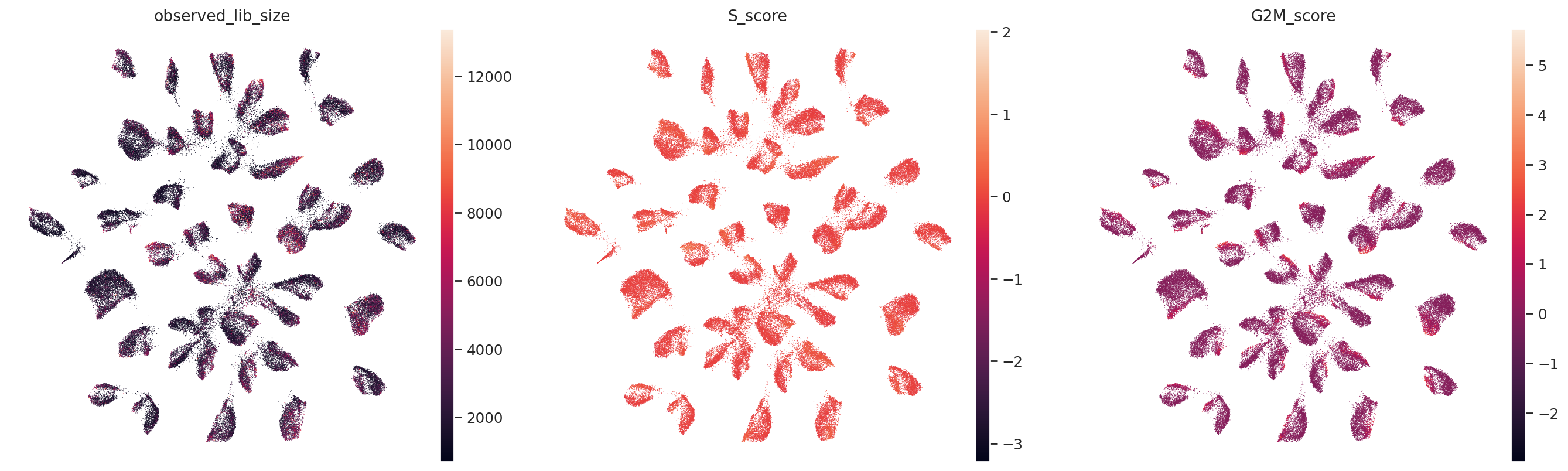

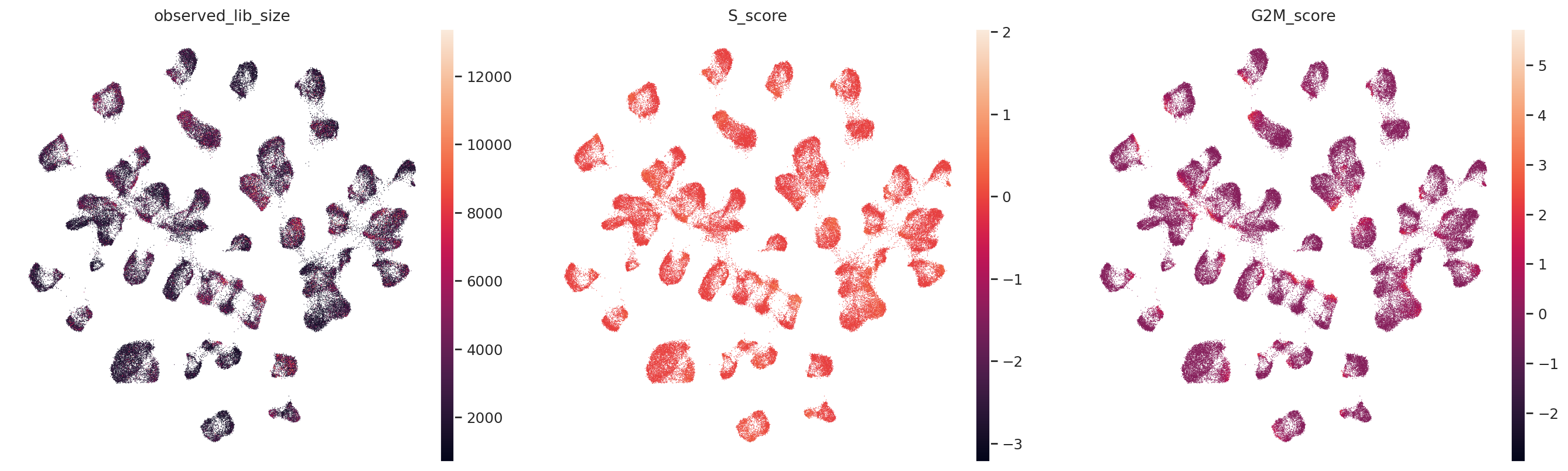

sc.pl.umap(
    adata,
    color=["observed_lib_size", "S_score", "G2M_score"],
    frameon=False,
    ncols=3,
)

Train regular SCVI model for comparison

scvi.model.SCVI.setup_anndata(adata, layer="counts", batch_key=batch_key)

model_scvi = scvi.model.SCVI(adata)

model_scvi.train(
    max_epochs=100,
    early_stopping=True,
    check_val_every_n_epoch=1,
    datasplitter_kwargs={"external_indexing": [np.array(train_ind), np.array(valid_ind)]},
)

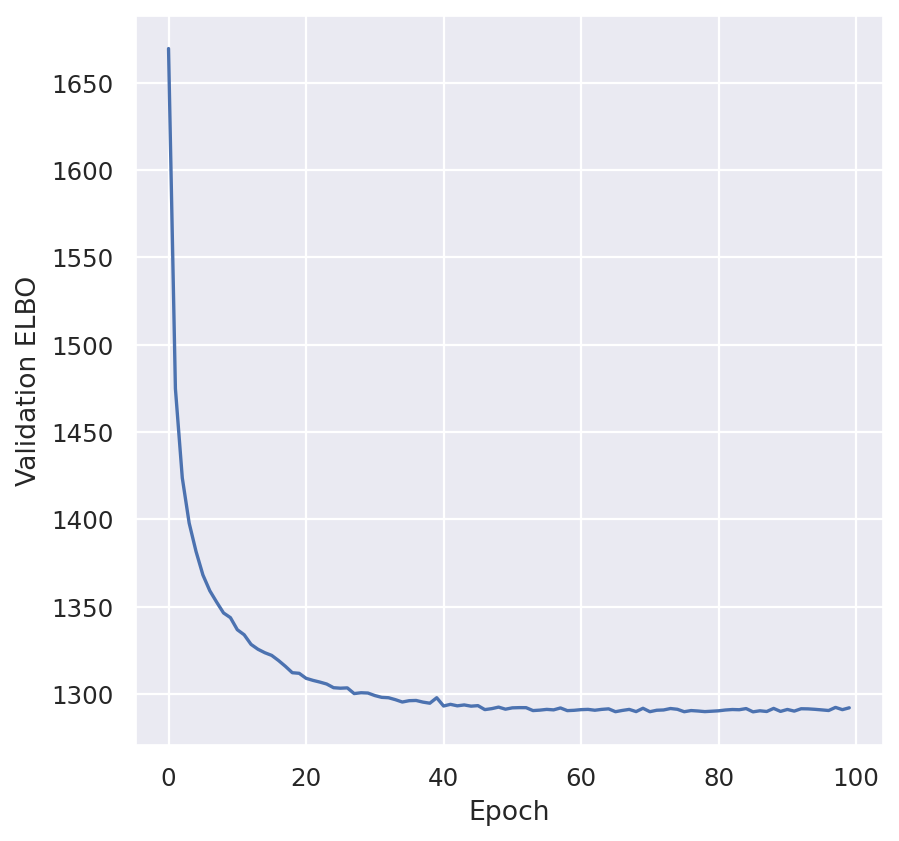

plt.plot(model_scvi.history["elbo_validation"])
plt.xlabel("Epoch")
plt.ylabel("Validation ELBO")
plt.show()

SCVI_LATENT_KEY = "X_scVI"
latent = model_scvi.get_latent_representation()
adata.obsm[SCVI_LATENT_KEY] = latent
latent.shape

(100000, 10)

# use scVI latent space for UMAP generation
rsc.pp.neighbors(adata, use_rep=SCVI_LATENT_KEY)
rsc.tl.umap(adata, min_dist=0.3)

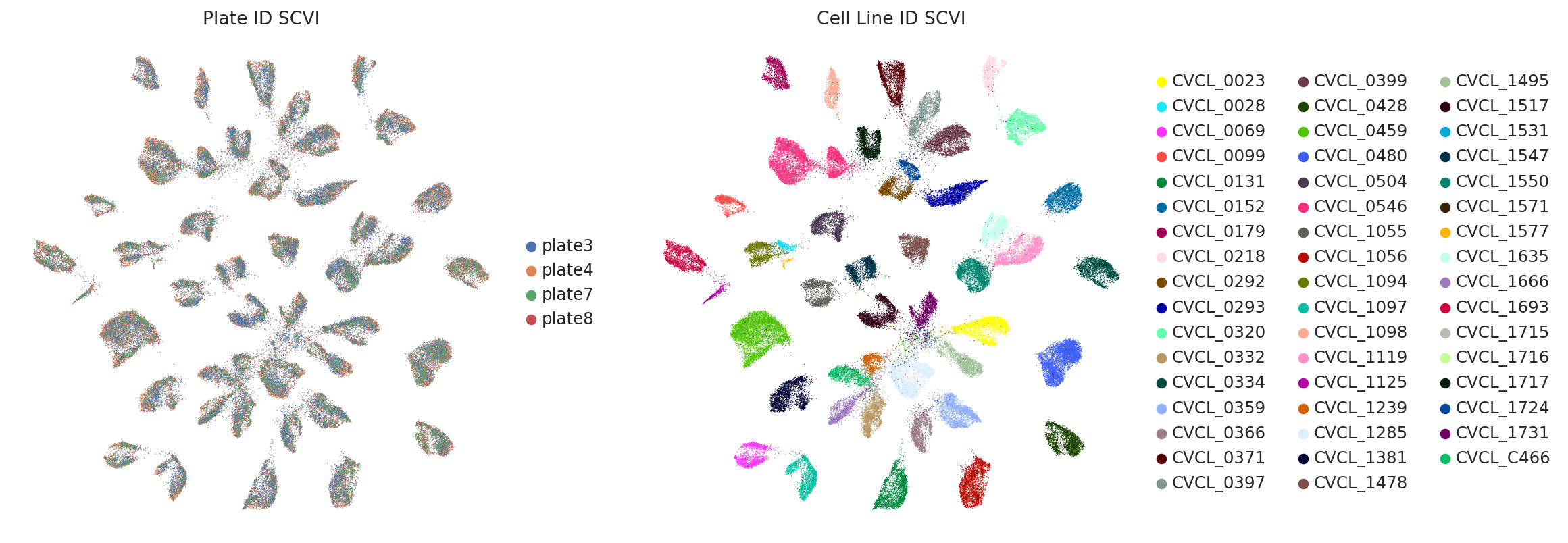

sc.pl.umap(
    adata,
    color=["plate", "cell_line_id"],
    title=["Plate ID SCVI", "Cell Line ID SCVI"],
    ncols=2,
    frameon=False,
)

sc.pl.umap(
    adata,
    color=["moa-broad", "phase"],
    frameon=False,
    ncols=2,
)

sc.pl.umap(
    adata,
    color=["observed_lib_size", "S_score", "G2M_score"],
    frameon=False,
    ncols=3,
)

Compare results

from scib_metrics.benchmark import BatchCorrection, Benchmarker, BioConservation

bm = Benchmarker(
    adata[list(np.random.choice(np.arange(adata.n_obs), size=1000, replace=False)), :],
    batch_key="plate",
    bio_conservation_metrics=BioConservation(
        isolated_labels=True,
        nmi_ari_cluster_labels_leiden=True,
        silhouette_label=True,
        clisi_knn=True,
        nmi_ari_cluster_labels_kmeans=True,
    ),
    batch_correction_metrics=BatchCorrection(
        bras=True,
        pcr_comparison=True,
        kbet_per_label=True,
        graph_connectivity=False,
        ilisi_knn=True,
    ),
    label_key="cell_line_id",
    embedding_obsm_keys=["X_pca", "X_scVI", "X_mrVI_Torch"],
    n_jobs=-1,
)
bm.benchmark()

INFO     CVCL_0028 consists of a single batch or is too small. Skip.
INFO     CVCL_1125 consists of a single batch or is too small. Skip.
INFO     CVCL_1531 consists of a single batch or is too small. Skip.
INFO     CVCL_1577 consists of a single batch or is too small. Skip.
INFO     CVCL_1715 consists of a single batch or is too small. Skip.
INFO     CVCL_1716 consists of a single batch or is too small. Skip.
INFO     CVCL_1724 consists of a single batch or is too small. Skip.
INFO     CVCL_0028 consists of a single batch or is too small. Skip.
INFO     CVCL_1125 consists of a single batch or is too small. Skip.
INFO     CVCL_1531 consists of a single batch or is too small. Skip.
INFO     CVCL_1577 consists of a single batch or is too small. Skip.
INFO     CVCL_1715 consists of a single batch or is too small. Skip.
INFO     CVCL_1716 consists of a single batch or is too small. Skip.
INFO     CVCL_1724 consists of a single batch or is too small. Skip.
INFO     CVCL_0028 consists of a single batch or is too small. Skip.
INFO     CVCL_1125 consists of a single batch or is too small. Skip.
INFO     CVCL_1531 consists of a single batch or is too small. Skip.
INFO     CVCL_1577 consists of a single batch or is too small. Skip.
INFO     CVCL_1715 consists of a single batch or is too small. Skip.
INFO     CVCL_1716 consists of a single batch or is too small. Skip.
INFO     CVCL_1724 consists of a single batch or is too small. Skip.

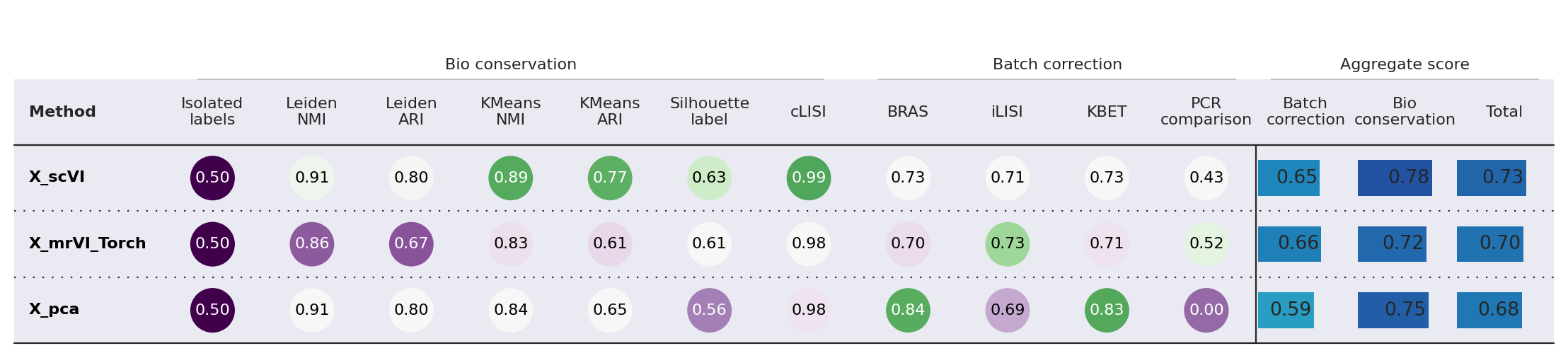

bm.plot_results_table(min_max_scale=False)

<plottable.table.Table at 0x7f1a2bb60d70>
